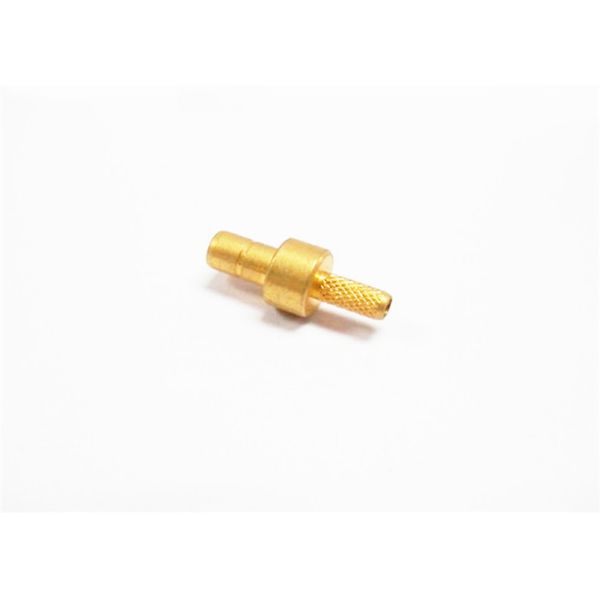

Semi Precision Fakra SMB Connector 50 Ohm 4 Ghz RF Coaxial GPS Antenna Adapter
Product Description :
Rf coaxial SMB connectors are semi - precision , subminiature devices that provide repeatable electrical performance to 4GHz . The SMB family of connectors provide a means of quick-connect and disconnect through a snap-on type coupling.
Its smaller physical size and snap-on coupling make the SMB an ideal general purpose connector where packaging density , ease of mating / unmating and economy are prerequisites . Crimp , clamp and receptacle types are avaliable in right angle , printed circuit board and straight body styles .
Typical application for RF coaxial SMB connectors are telecommunications , test equipment , instrumentation and GPS.
Applications :
Telecommunications
Instrumentation
Wireless
Process Controls
PC/LAN
Test and Measurement
Base Station
Microwave Components
Radio Boards
Video System
Features :
Low cost combined with high quality.
Broadband performance with low reflection from DC to 4 GHz.
Quick connect/disconnect snap-on mating.
50 Ohm and 75 Ohm impedance.
Various Plating Options.
Braid crimp cable attachment and solder center pin.
Automated assembly and inspection.
Especially designed for subminiature packaging needs where snap-on mating is an advantage.
Conforms to the interface dimensions of MIL-STD-384 and CC22130/131.
Specifications :
| SMB Connector Electrical Performance |
| Impedance | 50 ohms |
| Frequency Range | DC to 4.0GHz |
| Insulator Resistance | 1000 Megaohms min. |
| Voltage Rating | 750 Vrms max. |
| Dielectric Withstanding Voltage | 750 Vrms max. |
| Center contact resistance | 6.0 Milliohms Max |
| Outer contact resistance | 1.0 Milliohms Max |
About us :
1.We specialize in RF connectors , RF cable assembly and RF connectors . The main products we manufacture are RF connectors, MCX , MMCX , SMA , SMB , N , RF connector cable Our products are sold to different areas of overseas markets .
2. We have passed ISO9001 quality certification and our products
antenna connector comply with RoHS requirement .
3. We have professional technical development team . we have advanced NC processing equipment and precise test equipment .
4. Our principle is to meet customers’ requirement by good service and high-quality products . The prices of products….. are very competitive and reasonable .
5. We are committed to providing the best products….. to our customers with quickest delivery and best price .
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
